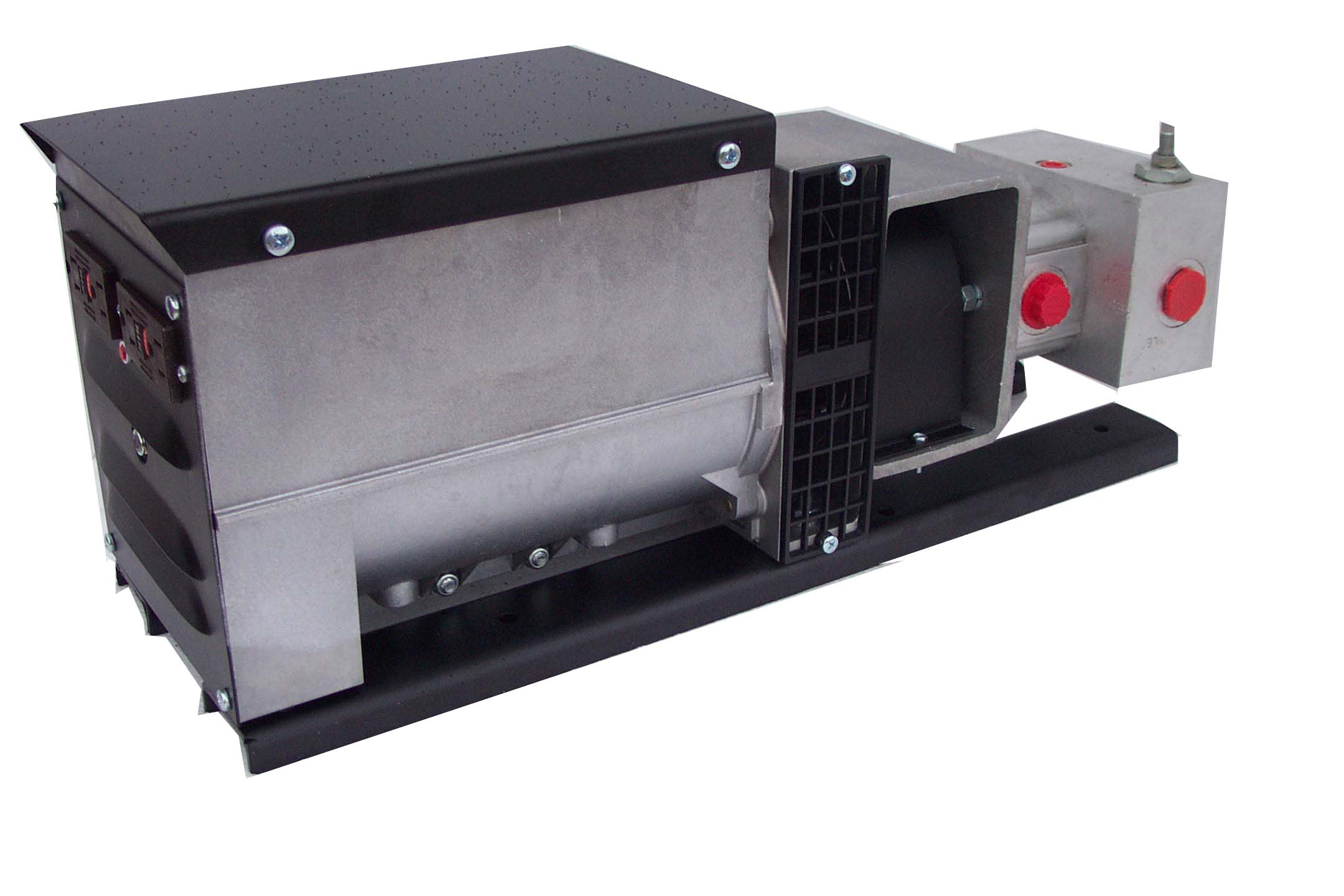

HYDRO-MAX HM-620
HYDRAULICALLY-DRIVEN
AC GENERATOR
BY
120 /
240 V
 60 Hz
6,200 Watts
1 Phase


QUALITY FEATURES
Brushless AC Generator  Includes Pressure Compensating Flow Regulator
Maintenance Free Design  Lifetime Guaranteed Alignment
SPECIFICATIONS
Flow  12 GPM  Volts  120 or 120 / 240
Pressure  1800 PSI  Amps  52 @ 120 V
Speed  3600 RPM  Watts  6,200 Continuous
Weight  87 Lbs  Power Factor  1.0
Dimensions (inches)  8W*10H*25L  Temperature Rating  105 C

FERNDALE, NY 12734

(845) 292-0800
http://www.geteck.com
